Project Description

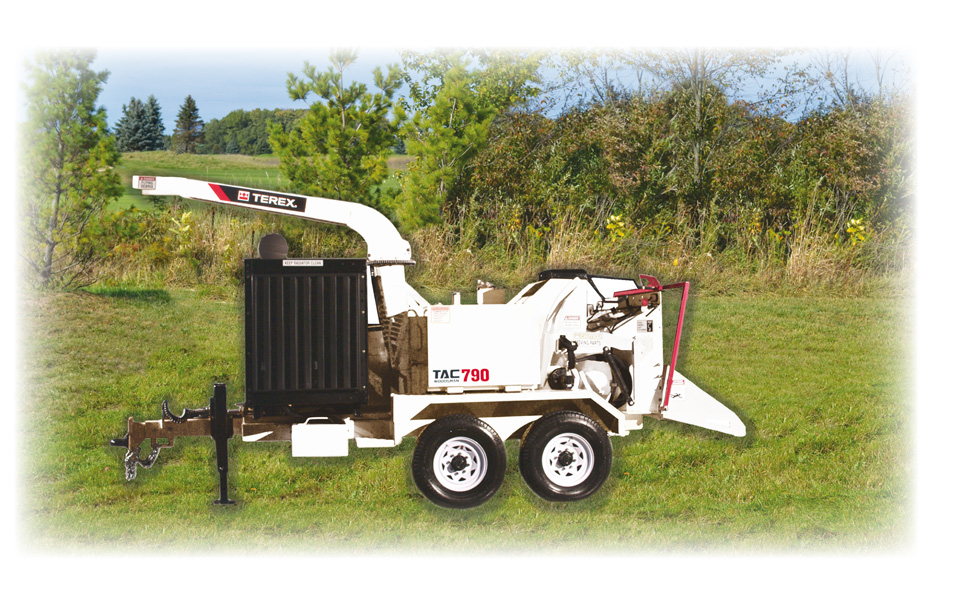

TAC Woodsman 790

The TAC Woodsman 790 has created its own classification within the chipper industry. The TAC Woodsman 790 has a 37″ diameter by 36″ wide cutting drum and like all Terex chippers, the 36″ wide rear pivoting feed wheel efficiently feeds the chipping drum with no restrictions. The 790 is capable of processing whole trees and tops while requiring very limited trimming by the crew. The overall compact size of the 790 and its voracious appetite for wood makes this unit the most versatile chipper available today.

The TAC Woodsman 790 has a wide variety of options that allow you to customize this machine to meet your needs. Whether its a conveyor and wireless remote control so that you can feed the unit from the comfort of the skid steer or the addition of a knuckle boom loader with 15 feet of reach and 4,000 pounds of lifting capacity, the Model 790 can be tailored to your company’s requirements.

Specifications

  • Weight: 12,000 lbs
  • Length (Operating): 250″
  • Length (Transport): 250″
  • Width: 101.5″
  • Height: 132.5″
  • Discharge Height: 132.5″
  • Drum Size: 37″ Diameter x 36″ width full pocket
  • Drum Speed: 1,279.25 rpm
  • Knives: (6) double edged two pocket
  • Hitch Type: 3″ pintle
  • Fuel Tank: 68 Gallons
  • Fuel: Diesel
  • Hydraulic System Relief: 2,500 psi
  • Chute Rotation: 300 degree
  • Tires: LT 235/75R16 (10 Ply)
  • Engine: John Deere/PowerTech E 6.8L
  • Gross Engine Power: 275 HP
  • Infeed rate: 97.70 fpm
  • Infeed opening: 21″ high x 36″ wide
  • Feed table height: 31.25″
  • Frame: 3/8 ” steel
