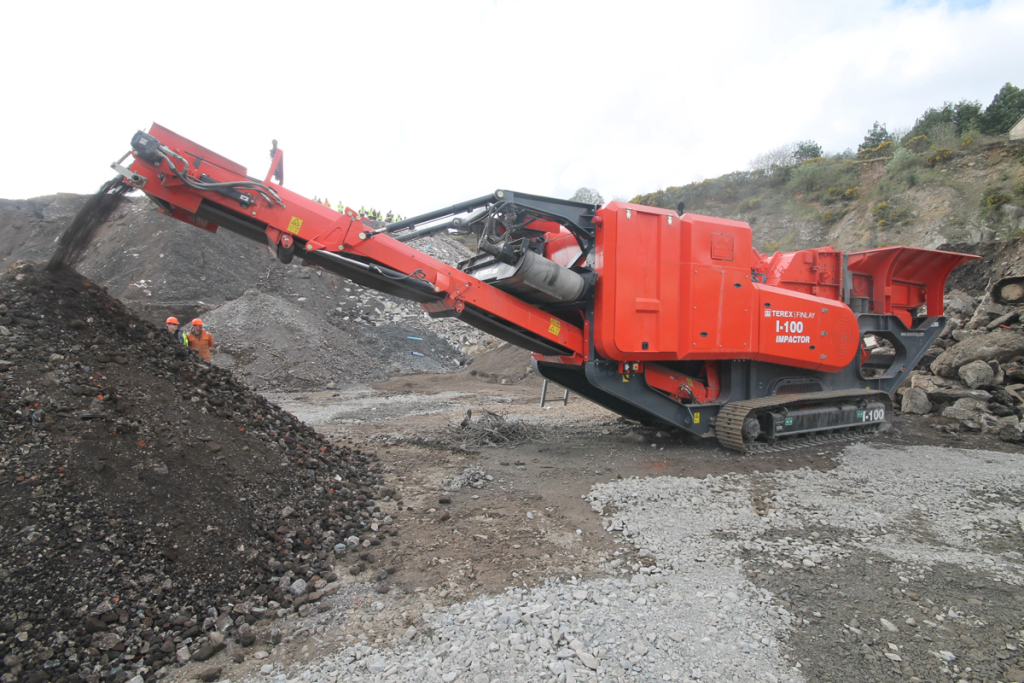

Terex Finlay I-100

The NEW Terex Finlay I-100 tracked impact crusher has been specifically designed for quarrying, recycling and demolition applications.

The I-100 features a Ø860mm x 860mm (Ø34″ x 34″) direct drive impact chamber with variable rotor speed.

The advanced electronic control system monitors, controls and regulates the speed of VGF with, integrated pre-screen, to maintain a consistent feed of material into the impact chamber while maintaining optimal crushing capacity.

The machine provides operators high material reduction ratios and produces a consistent product grading.

Features

  • Hydraulic apron setting assist provides convenient and efficient adjustment of the aprons.
  • Hydraulic overload protection provides instant protection for uncrushable material.
  • Heavy duty vibrating feeder (VGF) with integrated pre-screen helps by-pass dirty fines
  • Direct drive crusher chamber with independent belt tensioner allowing for rapid adjustment.
  • Crusher chamber is supplied with a 4 bar rotor and two apron design for large reduction ratios.
