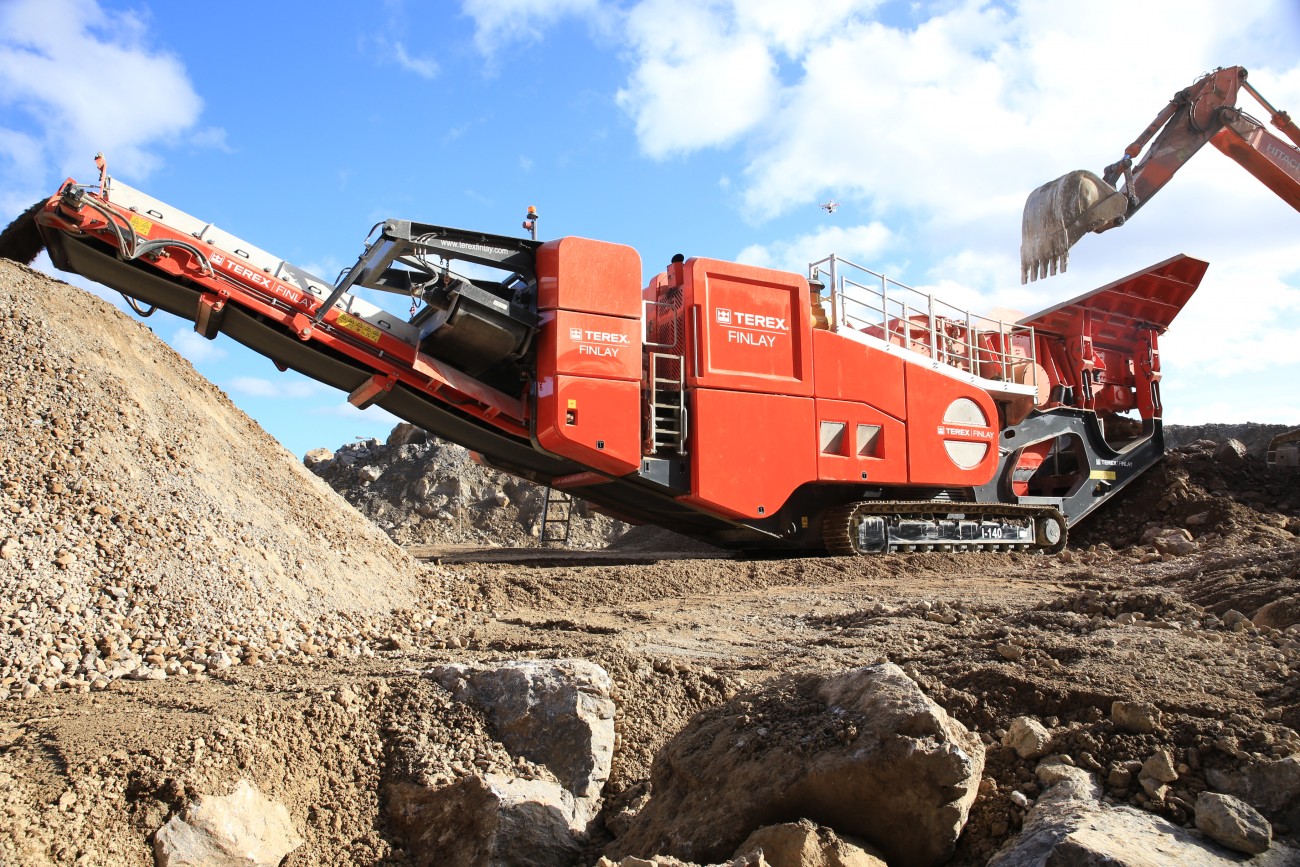

Terex Finlay I-140 Crusher

The Terex Finlay I-140 Impact Crusher shapes the future through innovation. This new generation impact crusher with redefined style and advanced technological design gives improved material flow and production capabilities in quarrying, mining, demolition and recycling applications. Incorporating the Terex® CR032 impact chamber with direct drive and advanced electronic control system the machine provides operators with high material reduction ratios and produces a consistent product shape. The high productivity, ease of maintenance and operation makes the machine an ideal solution for large scale producers and contact crushing operators.

STANDARD FEATURES ENGINE: Tier 3 / Stage IIIA – Caterpillar C15 403kW (540hp) Engine Tier 4 Final /Stage IV : Scania DC13 373kW (500hp) Engine

IMPACT CHAMBER: Chamber: Terex CR032 Fully Hydraulically assisted apron setting and hydraulic apron release Manual raise inlet allowing extra inlet clearance 4 bar rotor – Martensitic blow bars 2 Full & 2 Low Direct Drive via Clutch Drive belt tensioner wheel Blow bar lifting tool supplied Tip Speed range 35-44 m/sec (115-144 ft./sec).

MAIN CONVEYOR: Full length belt: 1300mm (51″) High spec scraper at main conveyor head drum Piped for dust suppression c/w Spray bars

HOPPER / FEEDER: Capacity: 6m³ (7.84 yd³ ) and a rear feed width of 2.2m (7’ 2”) Heavy duty vibrating feeder Stepped grizzly feeder with integral pre-screen, standard 50mm spacing Mesh aperture on grizzly feeder: 38mm Selectable discharge to by-pass conveyor or main conveyor

GENERAL: Track Speed Fully proportional Piped for overband magnet Galvanised catwalk c/w handrail, kick board and access ladders Hand Held Track Control Set with Connection Lead Safety Guards in Compliance with Machinery Directive Standard oils – (Recommended for ambient temperatures between -5 to +30°C) Telemetry System fitted c/w 3 years data subscription
