Project Description

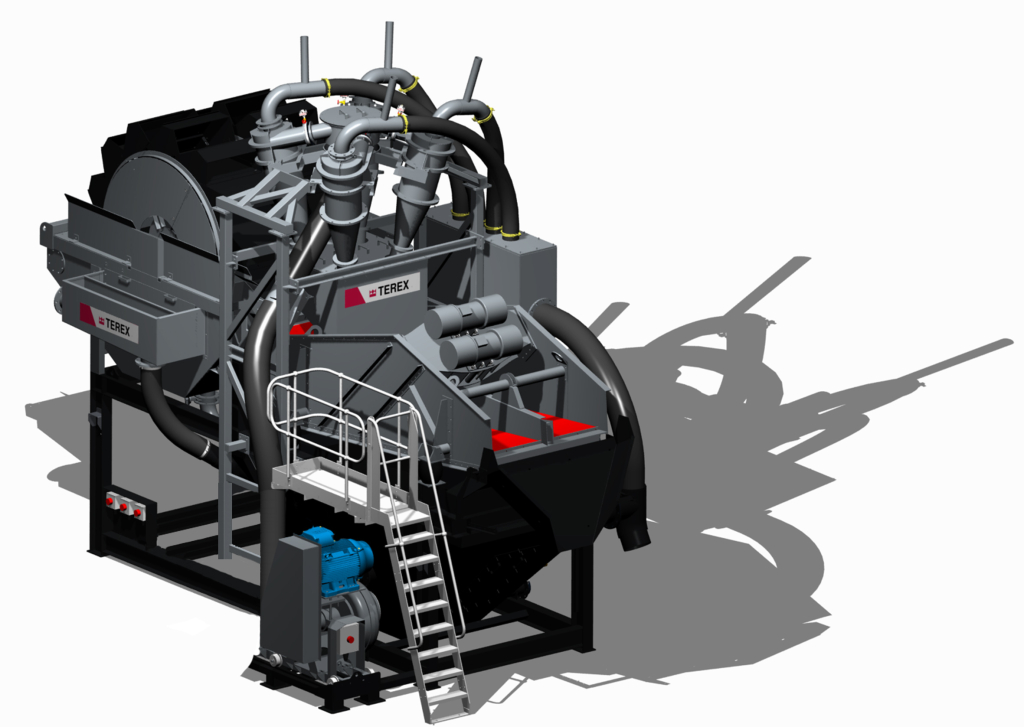

FM 200 Superfines

  • Static sand recovery unit on one chassis
  • 2 centrifugal slurry pumps
  • 4 hydrocyclones
  • Collection tank
  • 14 x 5 dewatering screen
  • Produces one grade classifying at approximately 40 micron
  • Designed to work in conjunction with Terex Washing Systems range


  • Maximum recovery of material above 40 μm (400 mesh)
  • Removes silt, slimes and clays below 40 μm (400 mesh)
  • Removes water following dewatering operation to 10–15% of residual water content
  • Major reduction in fine material discharging to the water management system, thus reducing recovery cycle and saving money
  • Heavy-duty robust construction ideal for rugged operating environment
  • Low maintenance
  • All wear areas rubber lined
  • Walkway and access steps
  • Quick assembly time
  • Centrifugal slurry pump
  • High frequency 14×5 de-watering screen fitted with polyurethane modular mats
  • Four rubber lined G4 Hydrocyclones which classifies at approximately 40 μm (400 mesh)
  • Self-regulating cyclone tank complete with built in float system
