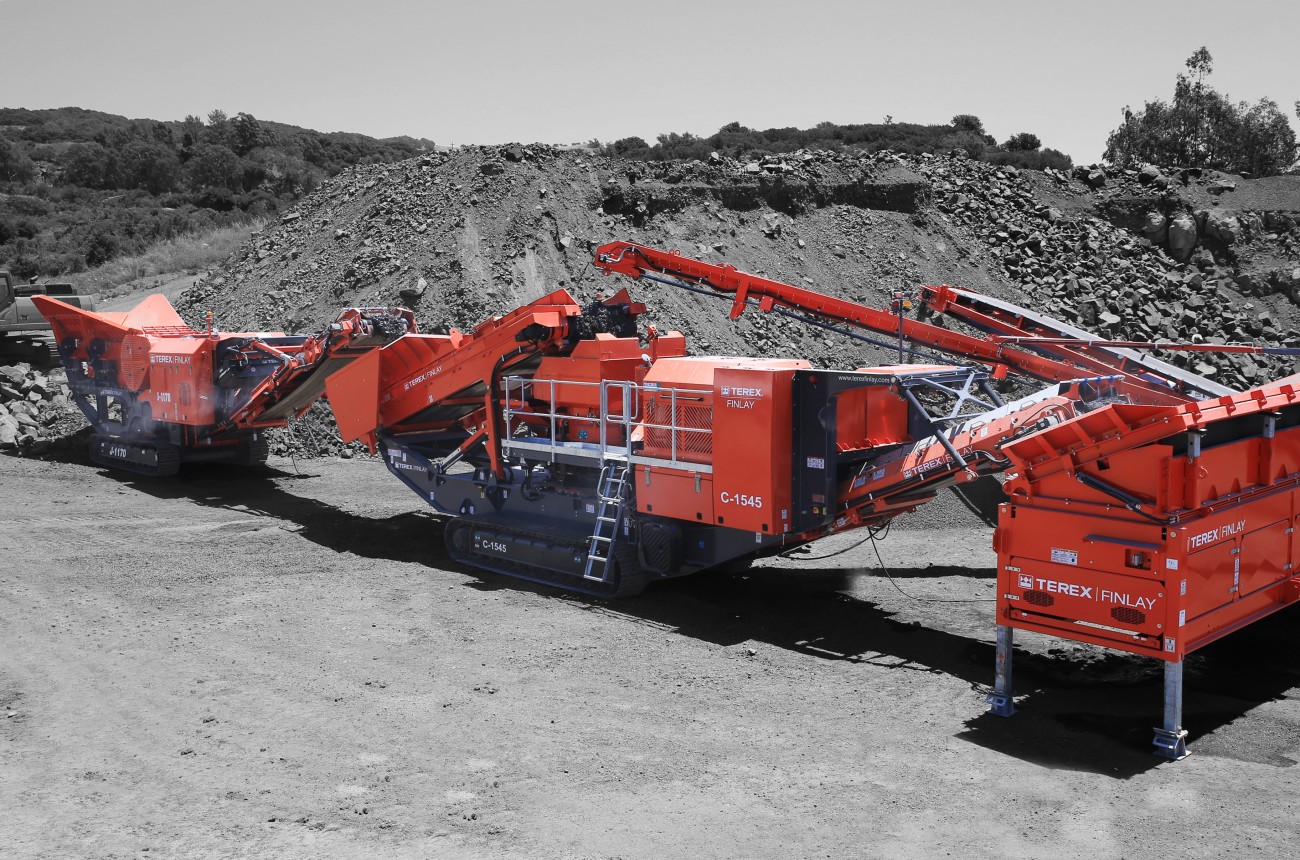

Terex Finlay C-1545 Crusher

C-1554 Crusher

C-1554 Fully Hydraulic CSS Adjustment with electronic monitoring system ensures ease of operation. Fuel efficient direct drive transmission through wet clutch. Hydraulic Tramp Relief System with automatic reset protects the chamber and minimises downtime. Metal detection system on feed belt with ‘auto-stop’ protects the cone from tramp metal and the purge system removes contaminants from the machine. u u u u TM The Terex® Finlay C-1554 is the ultimate mobile solution for any aggregates producer or contractor looking for a high output capacity machine that provides large reduction ratios and an excellent cubical shape. This aggressive machine incorporates the proven Terex® MVP450x cone crusher that can accept an all in feed and features direct variable speed clutch drive, automatic tramp relief and hydraulic closed side setting (CSS) adjustment. The large hopper/feeder on the plant has an automated metal detection and a purge system designed to protect the cone and reduce downtime by removing metal contaminants via the purge chute.

STANDARD FEATURES ENGINE: Tier 2 / Equivalent: Caterpillar C18 Acert 571kW (765hp)

CONE CHAMBER: Terex MVP450X 1380mm (54”) Range of liner configurations available, 18%, max feed size dependent on liner configuration and wear’ Direct cone drive via wet clutch

HOPPER/FEEDER: Hopper Capacity: 8m³ (10.4yd³) Belt width: 1.2m (48”) Wear resistant liner plates

MAIN CONVEYOR: Belt width: 1.2m (48”) High spec scraper at head drum Wear resistant liners at crusher discharge point Dust Covers

GENERAL: Galvanised catwalk c/w handrail, kick board and access ladders Heavy duty track unit, sprocket centres 3.8m, pad width 500mm Hand held track control set with connection lead Two speed tracking Safety guards in compliance to machinery directive One auxiliary drive Emergency stops Piped for dust suppression c/w spraybars
