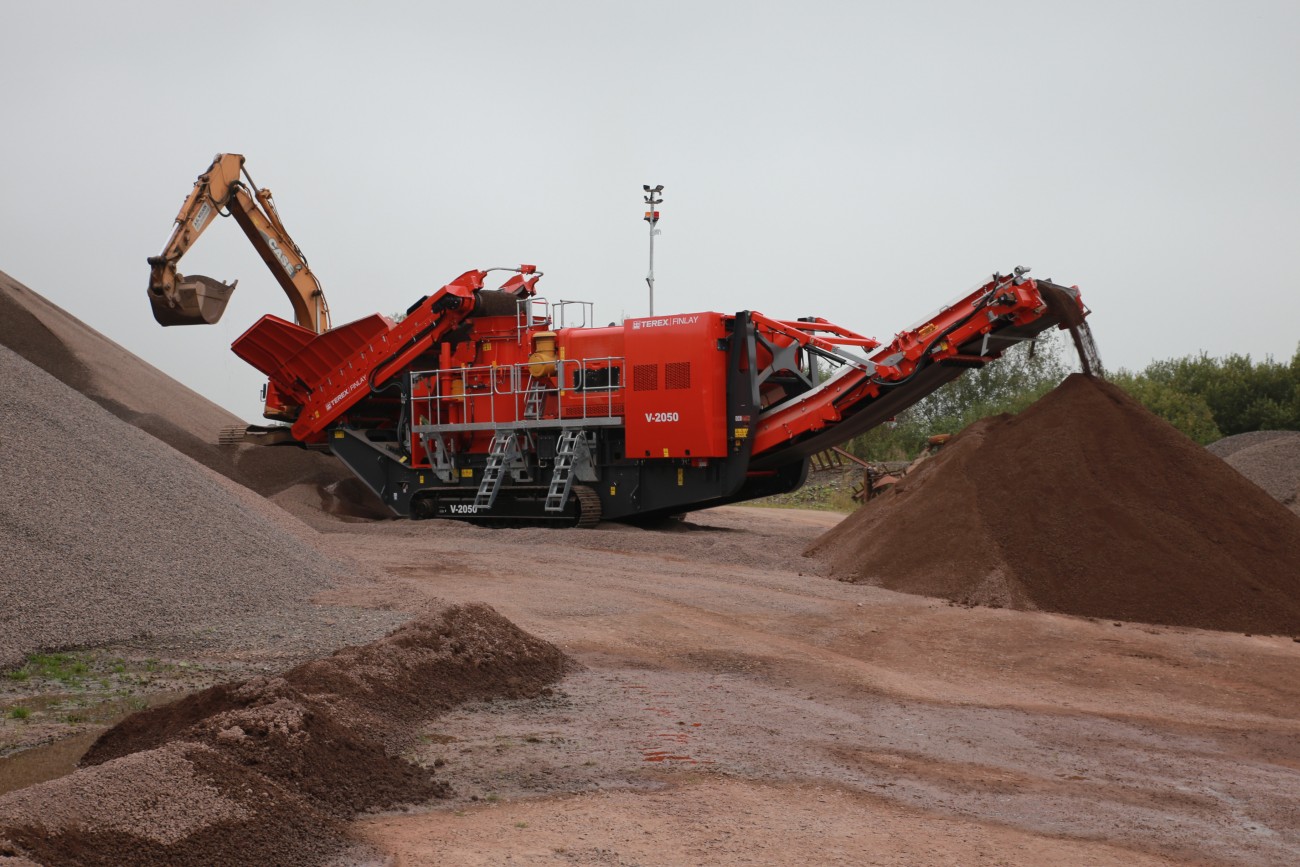

TEREX FINLAY V-2050 IMPACT CRUSHER

The Terex® Finlay V-2050 is a high capacity tracked Rock on Rock (ROR) vertical shaft impactor. The high
velocity rock on rock crushing process produces a superior high specification product in quarrying and
mineral processing industries with excellent overall plant throughput capacity. This impressive machine is built around the fieldproven Canica V-2050 chamber that features a new patent pending hydraulically controlled dual flow system. The heart of the VSI is the 6 port heavy duty closed rotor especially suited to more abrasive applications and minimises wear costs.

STANDARD FEATURES
ENGINE:
Tier 2 (Equivalent):- Caterpillar C18 ACERT 571kW (765hp) (Engines are available to meet EPA emission standards under CFR 1039.625)
VSI:
Terex 2050 VSI with Dual Flow system
Heavy duty 6 port closed rotorCascade – rock on rock

Direct cone drive via wet clutch
HOPPER / FEEDER:
Fixed hopper c/w wear resistant liners
Belt width: 1.2m (48”)
Metal detector c/w metal contaminants purge system
MAIN CONVEYOR:
Belt width: 1.2m (48”)
Dust Covers
CLIMATE SPEC:
Standard oils (Recommended for ambient temperatures between -5 to +30°C)
DUST SUPPRESSION:
Piped for dust suppression c/w spraybars
ELECTRICAL:
Emergency stops
Hand held track control set with connection lead
T-Link Telemetry System fitted c/w 3 years data subscription
GENERAL:
Safety guards in compliance to machinery directive
One auxiliary drive
Main conveyor
Belt Width: 1.2m (48”)
Belt Spec: Plain
Dust suppression: fitted with hose and spraybars as standard (no pump supplied)
Impact bars and wear resistant liners at feed point
Stockpile capacity: 69.4m3 (90.8yds3) @ 40°
Features:
The crushing chamber’s rock shelf is easily accessed through the side door, which also helps speed up maintenance checks
on the rotor.
Metal detection system on feed belt with ‘auto-stop’ protects the chamber from tramp metal and the purge system removes
contaminants from the machine. Fuel efficient direct drive transmission via a clutch.
Advanced variable speed control settings for producing a quality aggregate.
